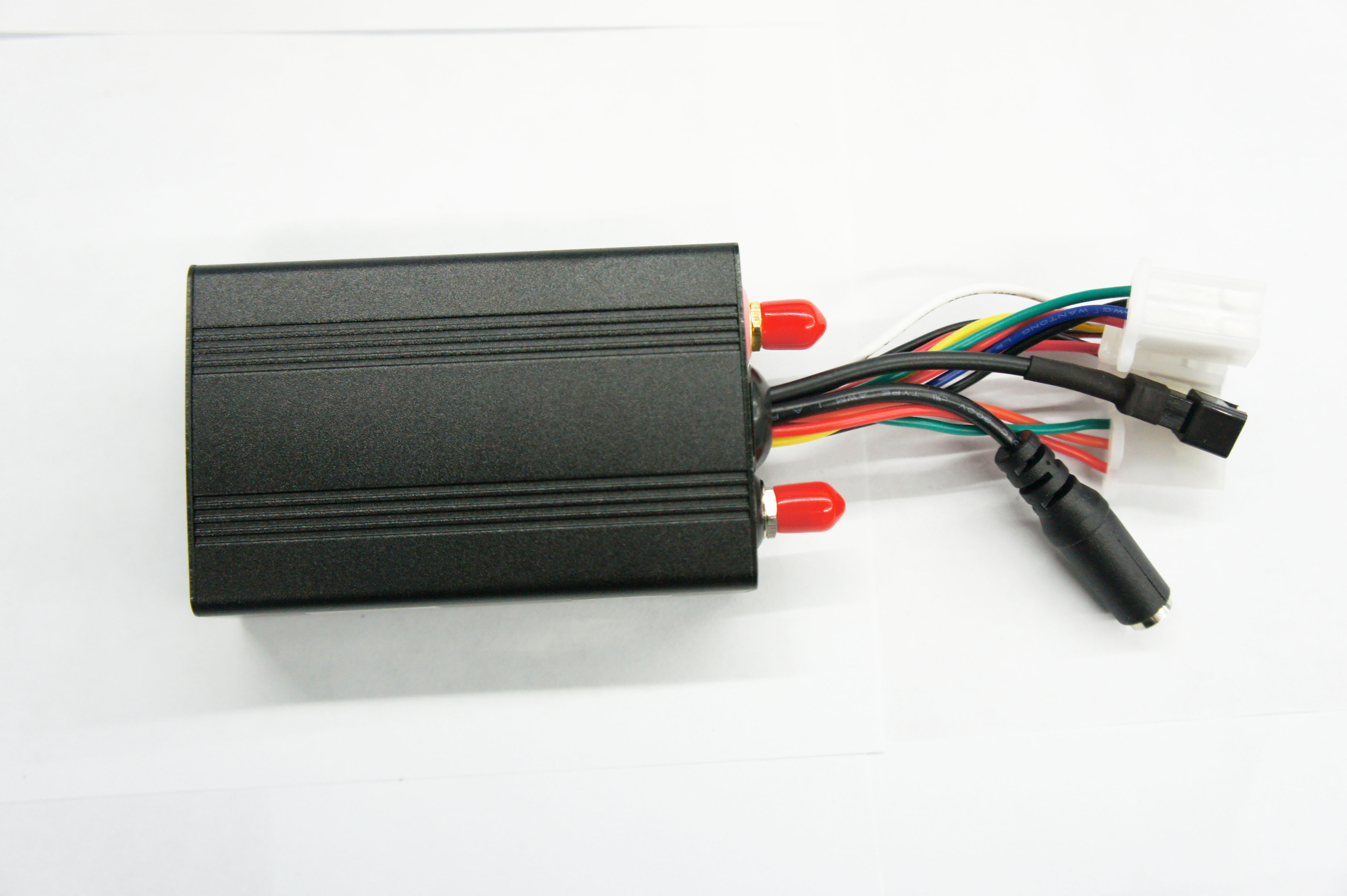

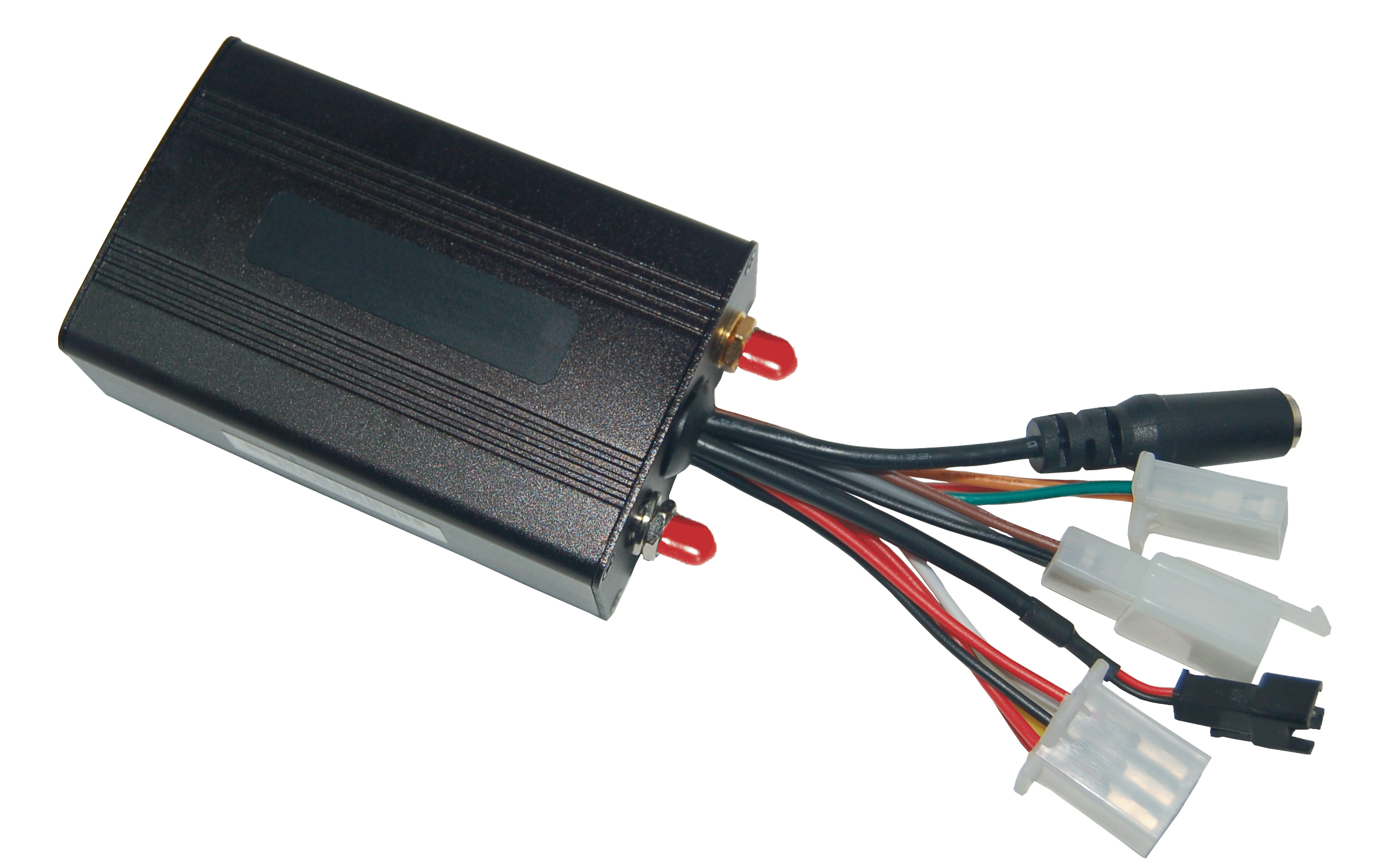

model number : JSP103
Main Features
●Support GPS positioning mode.
●Support GPRS network data transmission.
●Support for multi-directional terminal parameter settings.
●Support for automatic sleep, standby operating current is only 100mA.
●Support for peer-to-peer monitoring, point to group control, group all-round monitoring of the group.
●Combined with anti-theft, positioning, monitoring control, alarm, such as first aid and tracking multiple functions with a full range of integrated products.
●Support immbolization function
Specification
|
Item |
Specification |
|
Working voltage |
9V -- 30V DC |
|
Working current |
80mA – 110mA（12V/DC） |
|
Back-up battery life time |
Up to 1 hour |
|
Tracker size |
85mm X 55mm X 29mm |
|
Working temperature |
-25℃ -- 65℃ |
|
Moisture |
5% -- 95%（Non-water vapor condensation state） |
|
GSM Frequency |
900MHz/1800MHz or 850MHz/900MHz/1800MHz/1900 MHz |
|
GPS Module |
Latest U-BLOX locating module from Sweden or Skylab |
|
GPS Sensitivity |
-159Db |
|
GPS Frequency |
1575.42 MHz |
|
Receiving panel structure |
GPS module 32-channel |
|
Locating accuracy |
< 5m （95％） |
|
Cold start time |
< 45s(in average） |
|
Heat start time |
< 2 s (in average） |
|
GSM Chipset |
HUAWEI or SIMCOM |
